Machining Center Pallet Conveyors - Material Handling Conveyor Systems

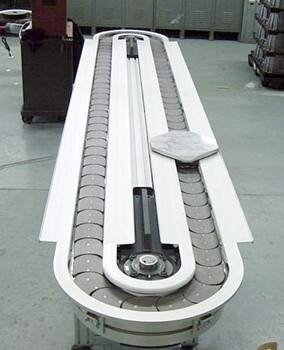

Maxiveyor Pallet Conveyor for Machining Centers
Our Maxiveyor heavy chain conveyor is designed to run heavy parts through machining centers. This pallet conveyor has proved exceedingly long-lived in chip filled, oil spray environments.
Pallets are 300mm x 300mm with a capacity of 80 lbs. per pallet. Total load on the conveyor can be up to 1200 lbs. at 8 to 45 feet/minute speed.

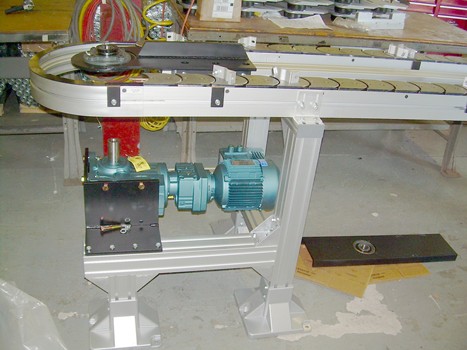

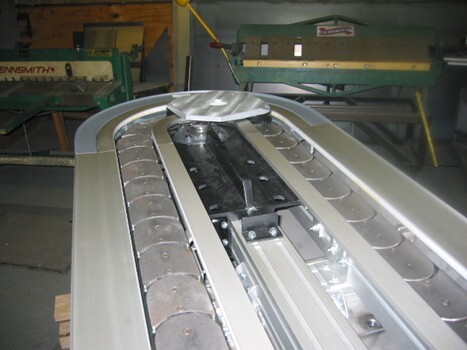

Maxiveyors feature a steel chain running on hardened steel slide rail in a continuous loop. The conveyor has an extruded aluminum frame with T slots along its length for mounting control devices. The frame has internal steel reinforcement. A high torque, inverter duty SEW Eurodrive gear motor drives the conveyor.
Wheel bend drives, 180 degree idlers, 90 degree turns, drip pans, pallet stops, and pallet locating stations are available.
