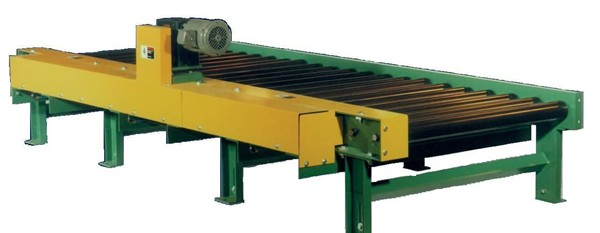

Omni Chain Driven Live Roller Conveyor (CDLR)

  • Great for transporting heavy pallets, steel sections, tires, drums, railway wheels, etc.
  • Large variety of roller sizes, spacings, capacities and frames available
  • Large selection of options available:
    • - Chain transfers side to side
    • - Coated rollers for gentle handling
    • - Turntables
    • - Escapements to singulate round products
    • - Transfer cars
    • - Retractable stops
    • - Zero pressure accumulation

Recent Project: Strapping, Palletizing and Stretch Wrapping System

Turnkey strapping, palletizing and stretch wrapping system. Straightforward except that we had to handle 13 different pallet sizes of radically different types and heights. The straps (both directions) had to be very accurately placed without bouncing or twisting. The system, including the chain driven live roller conveyor and chain transfers, had to run product backwards as well as forwards.

Omni Lineshaft Powered Roller Conveyor

  • Inexpensive low back pressure accumulation for lighter loads
  • 13" to 39" width (BF)
  • Reversible
  • 1 ½" roller centers for short products
  • Large selection of options:
    • - Belt transfers side to side
    • - Gates
    • - Merges and diverters
    • - Curves
    • - Zero pressure accumulation
    • - Pop up stops

Omni Belt Driven Roller Conveyor

  • Good for conveying products with a flat firm bottom
  • Economical transportation
  • Heavier duty than lineshaft conveyor


Both Lineshaft and Belt Driven Roller conveyors have been replaced by 24V Motorized Driven Roller (MDR) conveyors in applications requiring zoned accumulation. MDR has similar options to the types it replaces, and is safer and quieter. Capacities and widths can rival CDLR conveyors.

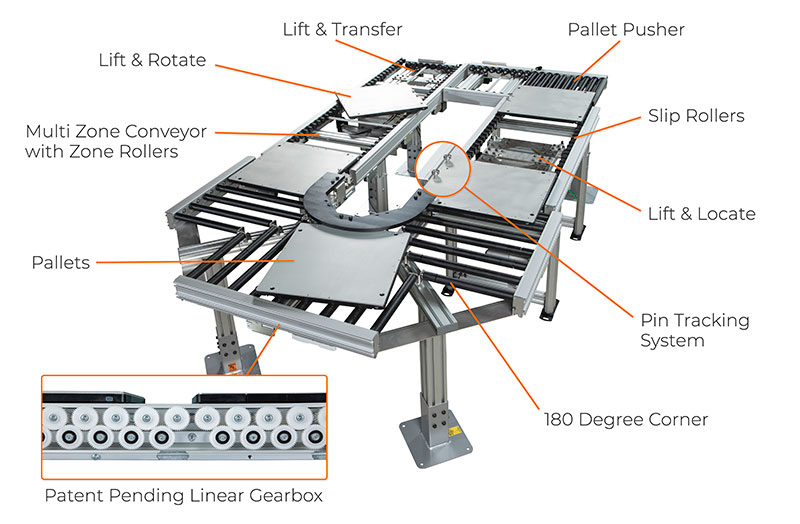

Dorner ERT 250 Edge Roller Conveyors

These are clean room (ISO 4) revolutionary pallet handling conveyors. Brushless DC driven rollers or slip rollers are available and easy zoned accumulation is built in. Curves, right angle transfers, lift and rotates, and lift and transfers are offered. Quiet to operate also. Capacities to 250 lbs per pallet.



We strongly recommend that as a first step you contact us at (800) 333-0162 or Email Us to discuss your application.
