PACLINE Overhead Conveyor Systems

Overhead Conveyors

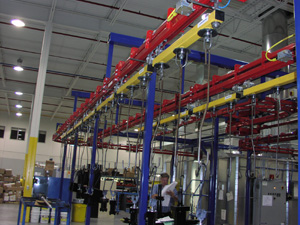

Overhead conveyors hang the part under the conveyor freeing up floor space. For production lines, paint lines, oven lines, dip tanks and storage in continuous loops.



The PAC-LINE™ (Model 250) Enclosed Track Overhead Conveyor is a highly compact, medium capacity, chain conveyor with unique features to allow for maximum conveying flexibility in small spaces:

  • Low profile drives
  • Low profile track sections
  • small radius rolled and hardened curves
  • Small radius sprocket turns
  • Small radius vertical curves, up to 90° if necessary

The PAC-LINE™ enclosed track monorail conveyor is designed to handle 55 lbs. (25 kg) from single pendants, which are standard on 6” centers. Coupling two pendants with a load bar allows up to 110 lb. loads. Distributed loads to 30,000 lbs can be conveyed on a 600 ft. system with only one drive.

Other features:

  • Modular track components ensure quick, trouble-free, onsite installations and modifications with reduced installation labor costs and minimized downtime.
  • Bolted track design for easy installation without welding.
  • All parts are zinc plated and heat treated to ensure full protection from wear and resistance to corrosive environments.
  • Low profile drive and track and tight radius curves on both horizontal and vertical planes.
  • Enclosed track prevents contamination from reaching chain and bearing surfaces for reduces cleaning and maintenance costs.
  • Chain attachment points every 6” maximizes versatility of hanging products.



Pacline Overhead Conveyor 250

  • 50 lbs/pendant
  • Cost effective
  • Powered chain
  • Manual push trolleys
  • Indexing and rotating carriers

250 lb/pendant systems, power and free, or inverted systems also.



We strongly recommend that as a first step you contact us at (800) 333-0162 or Email Us to discuss your application.
